D3210 /00 /01 /02 /10 /11 /14 /20
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170382

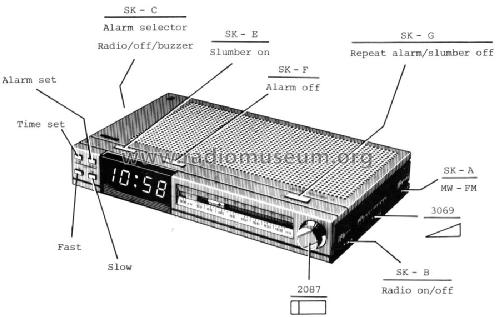

From manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

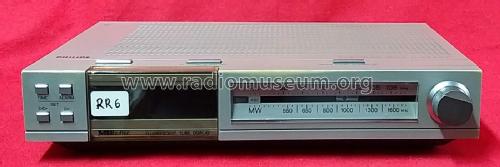

- Model: D3210 /00 /01 /02 /10 /11 /14 /20 - Philips; Eindhoven tubes
- Shape

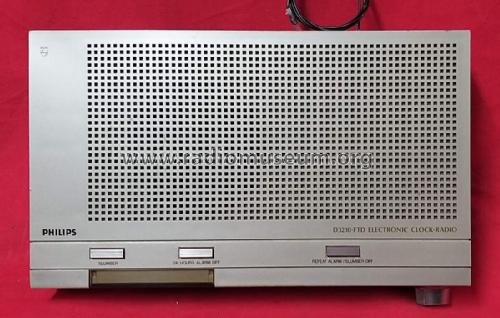

- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
- /00/02/14: IF/ZF=468kHz; Clock: 24hrs.
/01/10/11/20: IF/ZF=455kHz; Clock: 12hrs.

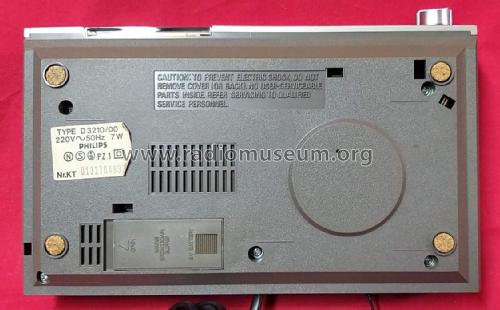

Mains: /00/01/02/11/14: 220V./50Hz.
/10: 240V./50Hz.
/20: 110V./60Hz.
Use 9V. batt. for clock backup.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
