D7527 /00 /02 /17 /20

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1981 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170415

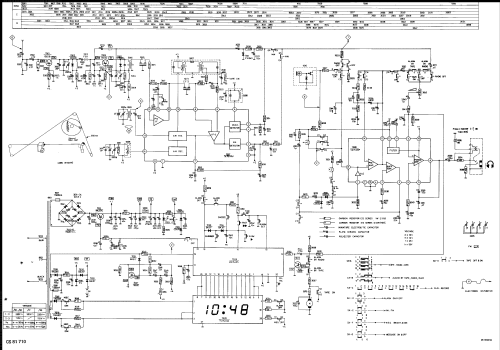

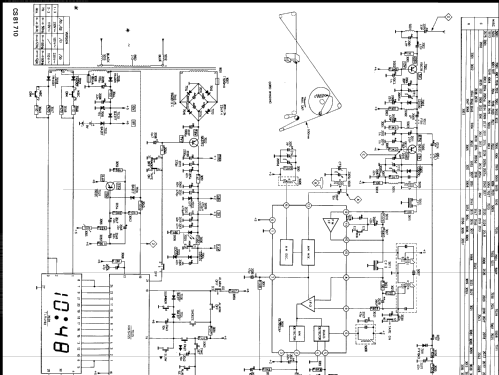

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: D7527 /00 /02 /17 /20 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes
  • Each transistor type listed once.
    suffices:
    /00/02: IF/ZF= 468kHz. Clock: 24hrs. Mains: 110; 220V @ 50Hz.
    /17: IF/ZF= 455kHz. Clock: 12hrs. Mains: 120 V @ 60Hz.
    /20: IF/ZF= 455kHz. Clock: 12hrs. Mains: 110; 220V @ 60Hz.
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
