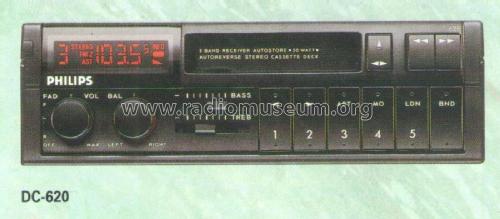

DC620 / DC620R

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1991/1992
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 288132

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 26 W (50 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: DC620 / DC620R - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 51 x 150 mm / 7.1 x 2 x 5.9 inch
  • Notes

  • Car radio with MW, LW and FM stereo PLL quartz tuner. LCD display, 30 presets, preset search, frequency search, autostore (MW+FM). Bass and treble control. Cassette player with auto-reverse and auto-replay.

    Output RMS on 4 ohm: 2 x 25 W or 4 x 8 W RMS
    THD 1% (DIN 45.500): 2 x 13 W or 4 x 5 W
    4 x speaker connections

    Listed in Dutch catalog as DC620R (probably DC620 /00R).

  • Price in first year of sale
  • 625.00 HFL
  • Mentioned in
  • -- Original prospect or advert (Philips Magazine 1991/1 and 1991/'92)
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
