DC Power Supply PE1540
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1978 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 327468

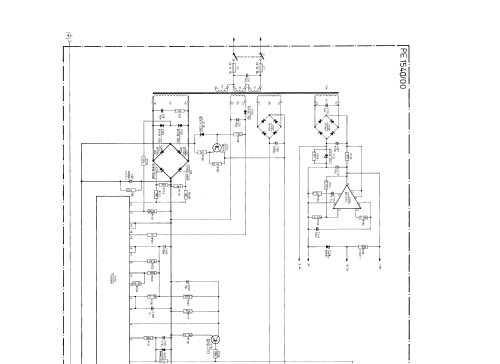

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-127; 220-240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: DC Power Supply PE1540 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 210 x 153 x 271 mm / 8.3 x 6 x 10.7 inch
- Notes
-
Das PE1540 ist ein 120W Labornetzgerät.
Als Spannungsstabilisierer von 0...40 V stufenlos einstellbar, als Stromstabilisator von 0...3 A kontinuierlich einstellbar.
Parallel- und Serienbetrieb möglich.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Günter Kudicke. See "Data change" for further contributors.
