• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 121982

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCL82 UY85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110/127; 220 Volt

• Loudspeaker

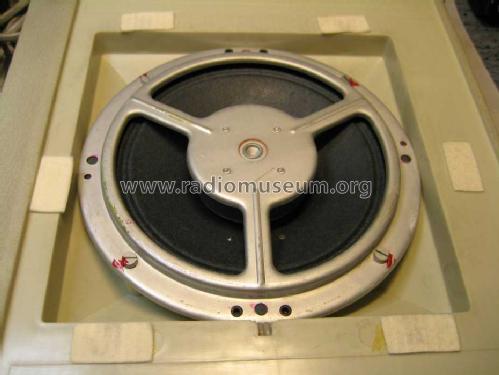

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

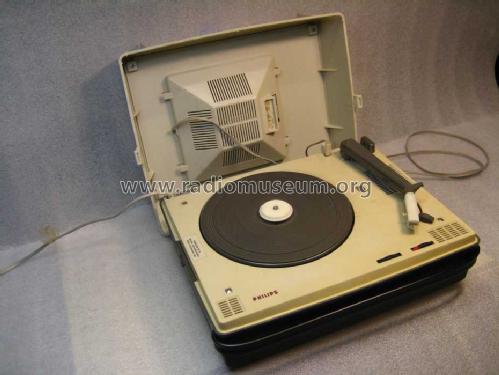

• Model: Diamond AG4656W /40D - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 160 x 275 mm / 13.8 x 6.3 x 10.8 inch

• Notes

• Four speed player (16, 33, 45 and 78 rpm). Stereo cartridge Philips AG3310 Diamond AH DU. Stereo signal taken out before amplification. Amplifier is only mono.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Author
• Model page created by Eero Ukkola. See "Data change" for further contributors.
