• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 263536

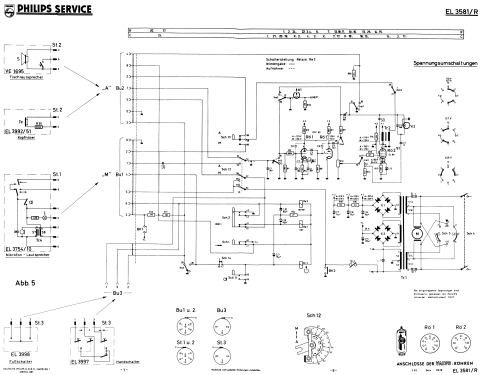

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC83 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Diktiergerät EL3581 /R - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 185 x 100 mm / 9.8 x 7.3 x 3.9 inch

• Notes

• Diktiergerät, 4,75 cm/sek, 8cm-Spulen oder Bandkassette. Mikrofon mit Start/Stop-Schalter; wird auch als Lautsprecher verwendet.

  Siehe auch Philips EL3581/22 und EL3581/80R

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 439.00 DM

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips, Produkt-Katalog 1961/62)

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
