• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7007

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands

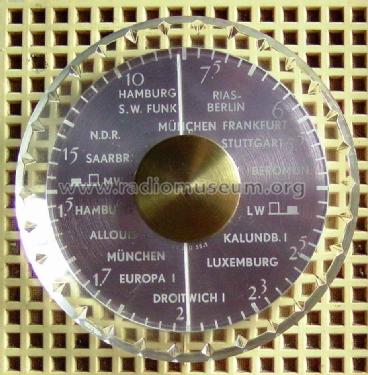

• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.14 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

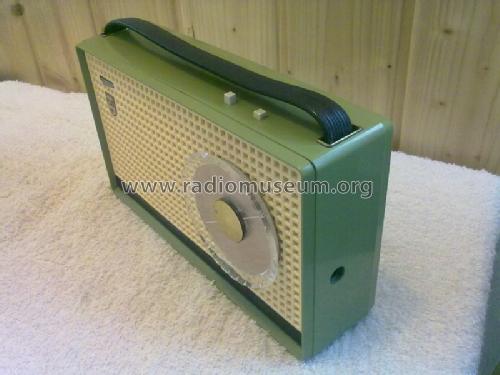

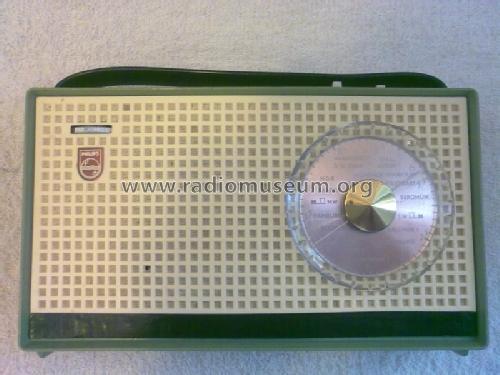

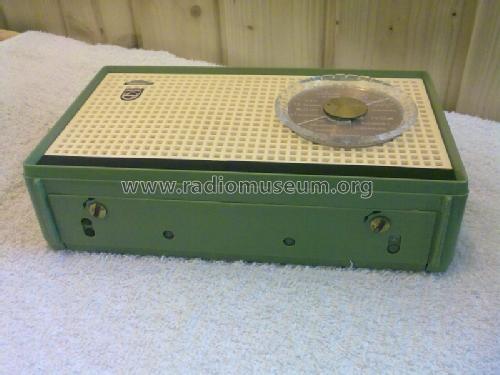

• Model: Dorette 300 L3D00T /00 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 238 x 140 x 60 mm / 9.4 x 5.5 x 2.4 inch

• Notes

• 3 Ausführungen (Bestellnummern für Gehäuseteile): /01 = grün, /02 = grau, /03 = orangerot.

  Batterien des Typs "Mono".

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Price in first year of sale
• 149.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb
