Pager - Personenrufanlage LBD 5879 - dp 6000 alpha
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1990 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 268672
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Dry Batteries / 1 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.5 cm = 0.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pager - Personenrufanlage LBD 5879 - dp 6000 alpha - Philips; Eindhoven tubes
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 55 x 20 mm / 3.5 x 2.2 x 0.8 inch
- Notes
-
Taschenempfänger für Personenrufanlage

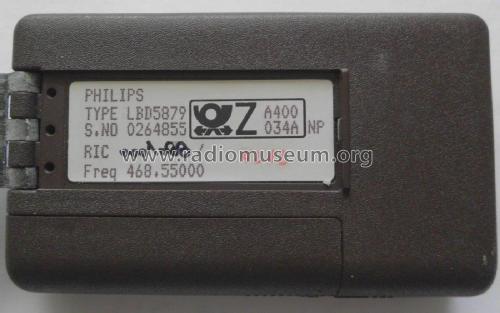

Ruf mit alphanumerischer Anzeige. Übertragung POCSAG Protokoll. Einkanalempfänger, Betriebsfrequenz Mustergerät: 468,55 MHz FTZ-Nr. A400 034A NP
- Net weight (2.2 lb = 1 kg)
- 0.065 kg / 0 lb 2.3 oz (0.143 lb)
- Author
- Model page created by Johannes Wigger. See "Data change" for further contributors.
