- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1972 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 332665
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-20W
- Number of Transistors
- 30
- Semiconductors
- AC187 AC188 AD149 AU110 BC157 BF115 BF178 BF194 BF195 BF196 BF197 AA119 AAZ15 TV20 BA100 BA148 BY118 BY127 BYX10 OA90 OA91
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 110; 127; 220; 245 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: E12T700 /00 - Philips Ibérica, COPRESA,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Philips Ibérica, S.A.E. (Copresa), E12T700 /00
TV B/N 12" con sintonizador electrónico de VHF/UHF
Listado un único semiconductor por tipo.
each semiconductor listed once
- Mentioned in
- Esquemario TV XIV REDE
- Literature/Schematics (1)

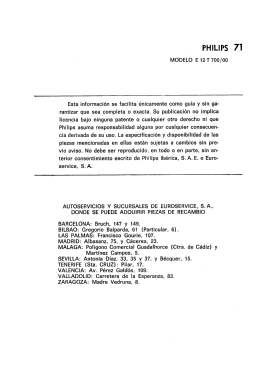

- Esquemas de Receptores de TV nº 2, Alfredo Borqué, Paraninfo, 1975
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
