EL3511 /00 /01 /02 /03 /20 /21 /22 /23

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1955
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 251519

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: EL3511 /00 /01 /02 /03 /20 /21 /22 /23 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 430 x 210 x 310 mm / 16.9 x 8.3 x 12.2 inch
  • Notes

  • All these versions contain a chassis of type EL3511 /10 or EL3511 /11. Further information including electrical and mechanical schematics can be found there.

    Differences of the various versions:

    • /00 : 50Hz, brown casing, all accessories.
    • /01 : 60Hz, brown casing, all accessories.
    • /02 : 50Hz, brown casing, without accessories.
    • /03 : 60Hz, brown casing, without accessories.

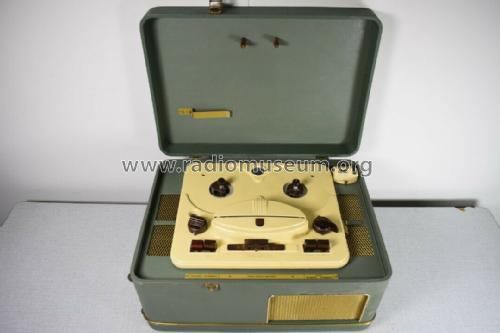

    • /20 : 50Hz, green casing, all accessories.
    • /21 : 60Hz, green casing, all accessories.
    • /22 : 50Hz, green casing, without accessories.
    • /23 : 60Hz, green casing, without accessories.

    A tape counter was not built-in but could be supplied separately (EL3939 /00).



  • Net weight (2.2 lb = 1 kg)
  • 14.5 kg / 31 lb 15 oz (31.938 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
