• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 251795

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECL82 EZ80 EM81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

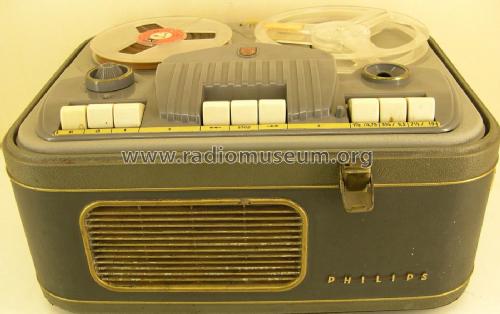

• Model: EL3516 /00 /02 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 205 x 330 mm / 15.7 x 8.1 x 13 inch

• Notes

• Complete tape recorder EL3516 /00 and EL3516 /02 (50 Hz mains).

  Version /00 was delivered with accessories like a microphone, a full and empty reel and an interlink cable for connection to a radio or amplifier.

  Version /02 is identical to version /00 but without the accessories.

  Both versions contain a chassis type EL3516 /10 which was also sold separately.

  2 Tracks (1 in every direction).

  Reel size: 18 cm (7") max.

  Inputs:

  • (Bu1) Microphone (EL6112 /03): 3mV / 100kΩ.
  • (Bu3) Radio or pick-up: 330mV / 600kΩ.

  Outputs:

  • (Bu4) External loudspeaker - the internal loudspeaker is automatically cut off.
  • (Bu5) Line-out 5.5Ω.

  Speeds and frequency ranges:

  • 4.75 cm/sec : 50 - 3500 Hz.
  • 9.5 cm/sec :   50 - 8000 Hz.
  • 19 cm/sec :    50 - 15000 Hz.

  Rumble/noise: better than 40dB.

  For more information: see the complete service manual, in PDF format, at the bottom of this page.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

Service Documentation Philips EL3516(G)

2993 KB
