EL3527 /00

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 251922

• Picture

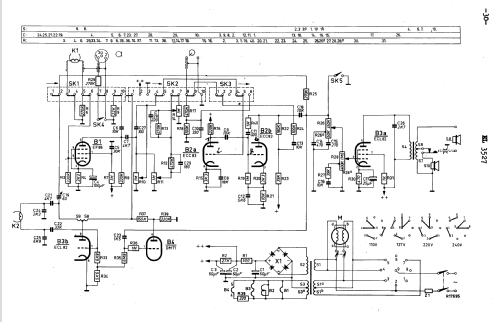

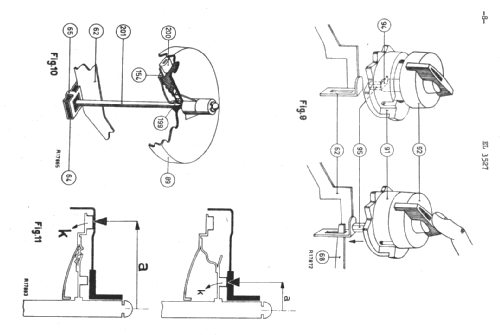

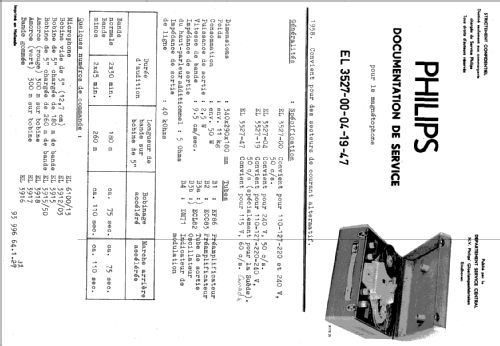

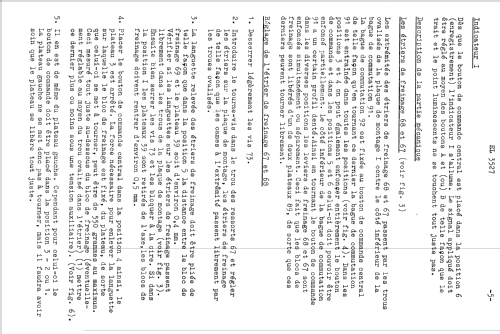

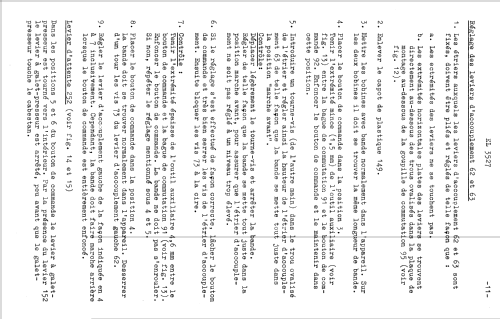

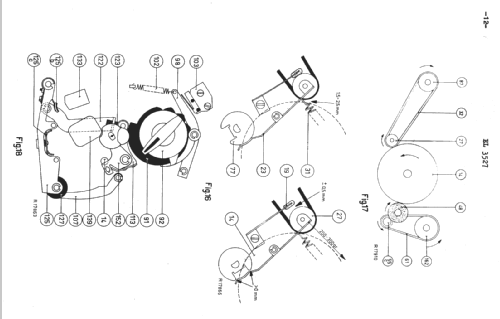

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC83 ECL82 DM71

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: EL3527 /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 180 x 290 mm / 13.4 x 7.1 x 11.4 inch

• Notes

• Mono Tape Recorder EL3527 /00 for 6,3 mm tape. Mains 50Hz.

  Tracks: 2 (1 each direction).
  Motor(s): 1.
  Speed: 9.5 cm/sec only.
  Reel diameter: 13 cm (5").
  Output for a second loudspeaker (5Ω) or headphones with automatic cut-off of internal loudspeaker.

  Input for microphone and radio or pick-up.
  Output for amplifier or radio.
  The signals from the microphone and the other input can be mixed.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)
