- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1960 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 252620

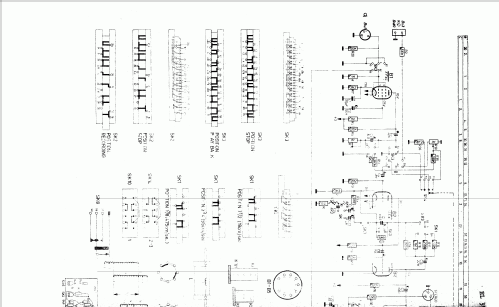

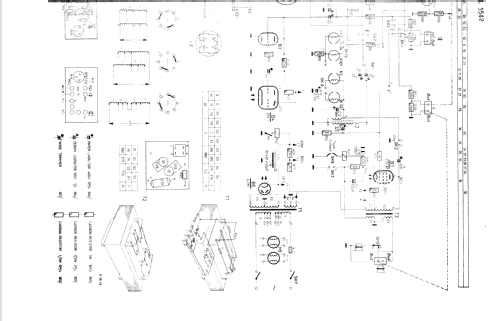

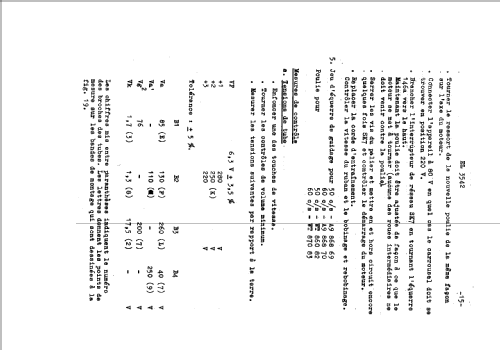

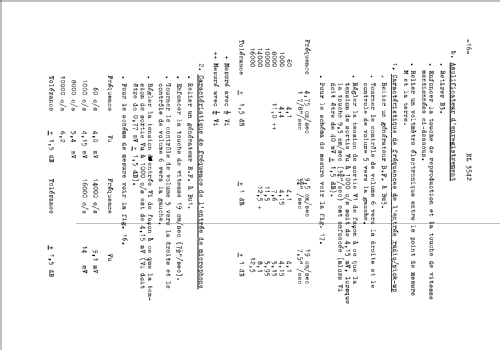

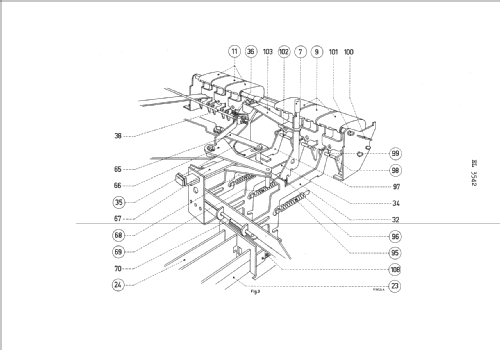

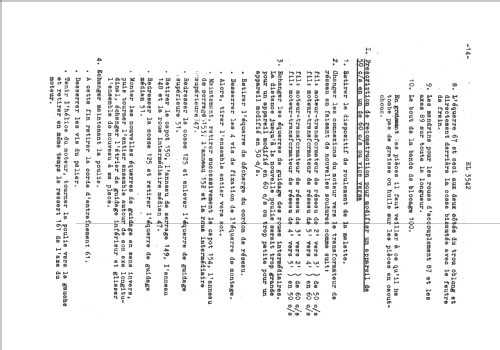

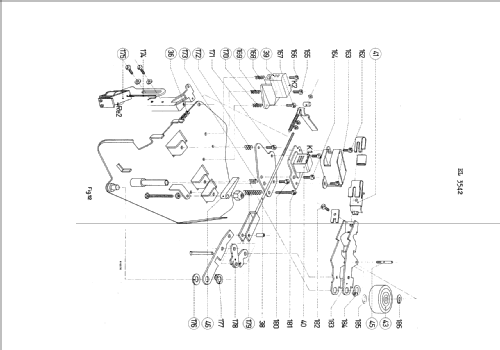

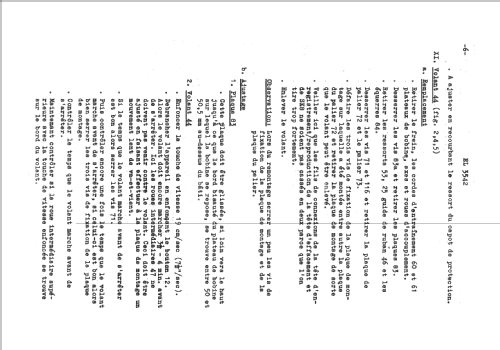

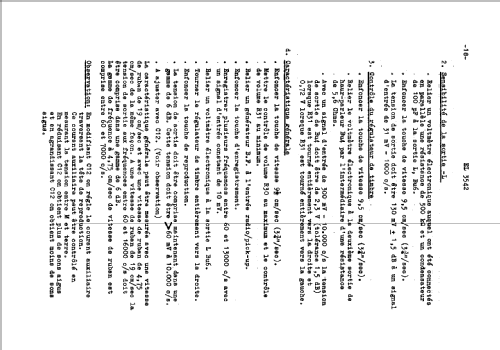

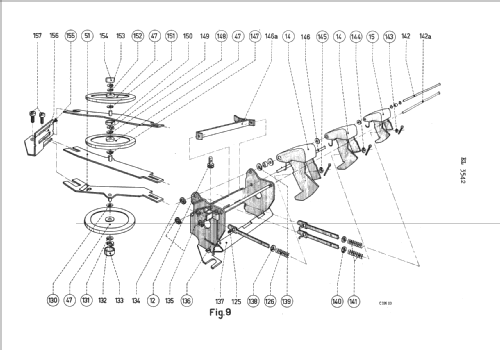

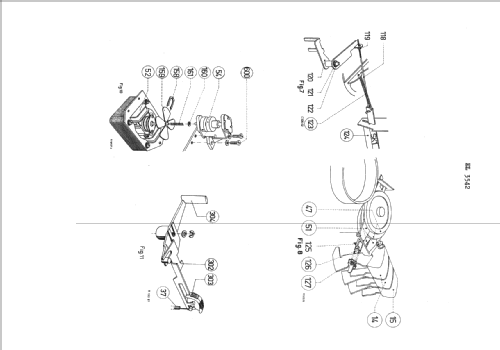

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: EL3542 /00 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Notes
-

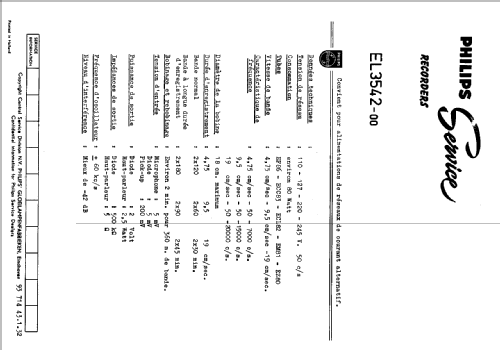

Mono Tape Recorder EL3542 /00.
Tracks: 4 (2 in each direction).
3 Speed: 4,75 - 9,5 - 19 cm/sec.
Motor(s): 1.
Reel diameter: up to 18 cm (7").
S/N ratio: 42 dB or better.
Frequency response and tape speed:- 4,75 cm/sec: 50 - 7000Hz.
- 9,5 cm/sec: 50 - 15000Hz.
- 19 cm/sec: 50 - 20000Hz.
Inputs:
- Microphone: 5mV.
- Diode*: 5mV.
- Gramophone: 200mV.
Outputs:
- Diode*: 2V.
- Headphones.
- External loudspeaker (5Ω) with automatic cut-off of internal loudspeaker.
* Diode and diode-cable: Connector and cable which serve for both IN and OUT signals, sometimes at the same time.
