• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 98453

• • Brand: Deutsche Philips-Ges.

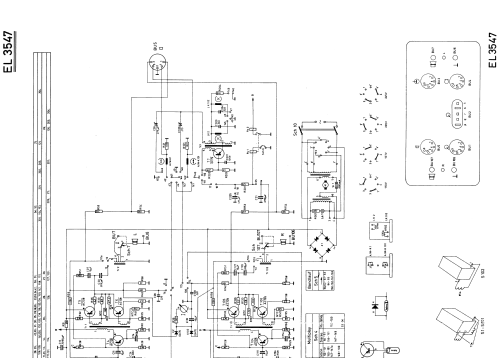

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AC107 AC107 OC75 OC75 OC75 OC75 OC44 OC44 OC74 OC74 OC74 OC74 OC79 OA70 OA70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: RK36 EL3547A /22 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 180 x 330 mm / 15.4 x 7.1 x 13 inch

• Notes
• Vierspur-Stereo-Tonbandgerät, 4,75/9,5 cm/s., Spulen-Ø 15 cm, Spaltpolmotor.

• Mentioned in
• Funk-Technik (FT) (8/1962, S. 246 - 248 / Ausführliche Beschreibung, Daten, Schema)

• Literature/Schematics (1)
• -- Original-techn. papers.
