- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1965 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 99970

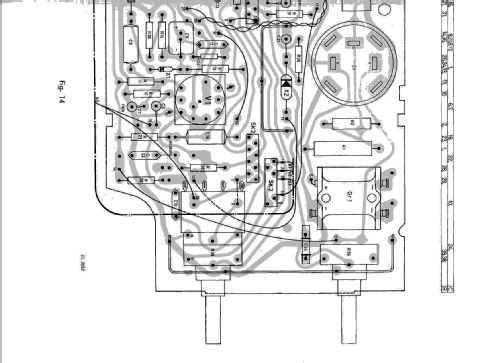

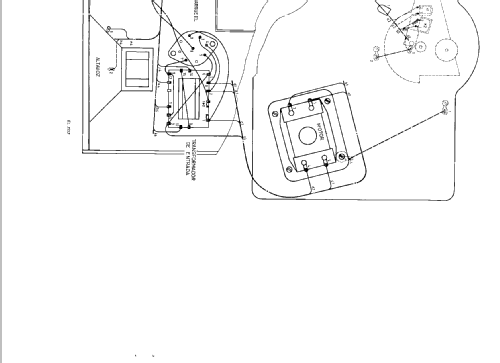

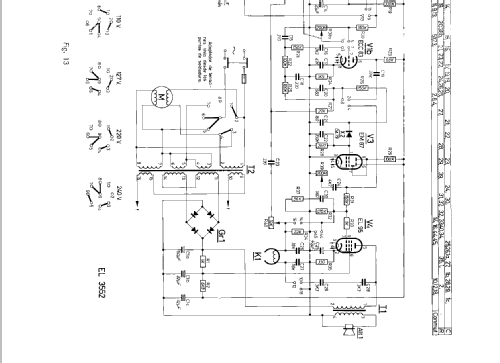

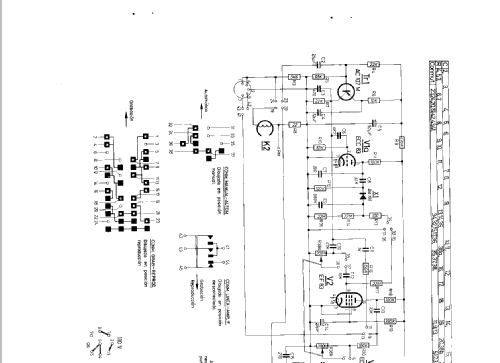

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 1
- Semiconductors
- AC107
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: EL-3552 - Philips Ibérica, COPRESA,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 360 x 125 x 255 mm / 14.2 x 4.9 x 10 inch
- Notes
- Transistor: AC107M
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
