- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 152560
Hersteller-Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 245 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

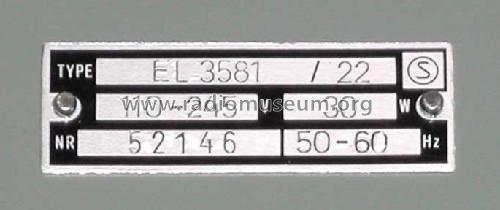

- Model: EL3581 /22 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 250 x 100 x 195 mm / 9.8 x 3.9 x 7.7 inch
- Notes

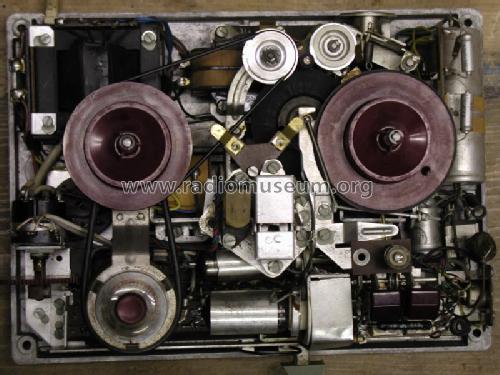

- Diktiergerät, 4,75 cm/ sek, 8 cm Spulen oder Bandkassette.
Mikrofon mit Start/ Stopp Schalter, wird auch als Lautsprecher verwendet.
Statt Mikrofon kann der Tischlautsprecher VE1629 angeschlossen werden der dann auch als Mikrofon verwendet wird.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
| Mode d'emploi Dictaphone Philips EL3581 | 1497 KB |
- Documents regarding this model
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
