• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1961 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 168541

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC75 OC75 OC71 OC75 OC72 OC72

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

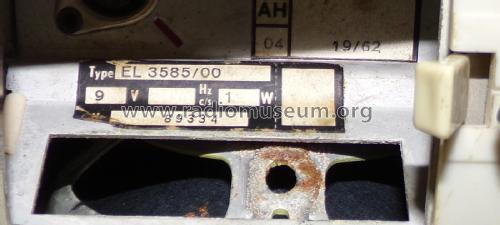

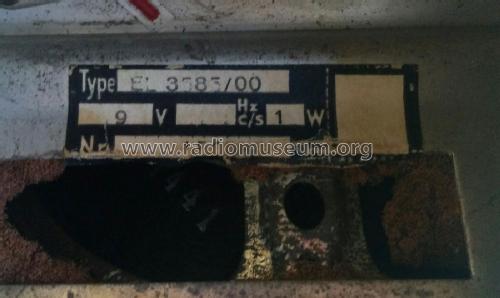

• Model: EL3585 /00 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 190 x 95 mm / 10.4 x 7.5 x 3.7 inch

• Notes

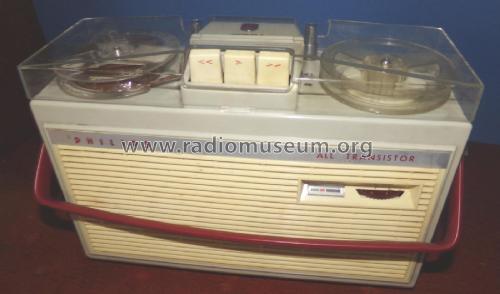

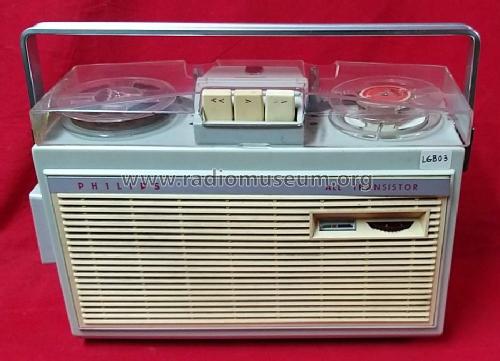

• All Transistor; Portable transistorized reel to reel tape recorder, DIN terminal for mic., VU meter, leather carrying case.

  There were three main manufacturing facilities for Philips tape recorders: Hasselt (B), Eindhoven (NL) and Vienna (A).

  EL3585 models do not carry a clear indication of origin. Model type suffices can carry different meanings, here they denominate either the country of production or the commercial destination country (/30 Austria, /22 Germany). Suffix /00 is the base model (likely manufactured at the main plant), it is often omitted on type labels.

  Until we know more, this general model page is filed under Philips Netherlands.

  See also:

  • Austria
    • Maestro 10 / EL3585 /30, local name, country suffix /30
  • Germany
    • RK5 / EL3585 /22 , local (additional) type, country suffix /22
  • Netherlands
    • EL3585 /00 - variant with tone and volume controls; this model is probably a  mislabeled EL3586
    • EL3585 /15 - late production with OC75N and a diode replaced by transistor

  There are also a number of derivative models, under diverse Philips sub-brands, partly with differing exterior:

  • Norelco Continental 100 (USA)
  • Hornyphon Diola-Batterie WM4100BT /00 (A)
  • Radiola RA9585 (F)
  • Stellaphone ST470 /00 (UK)

• Net weight (2.2 lb = 1 kg)
• 3.650 kg / 8 lb 0.6 oz (8.04 lb)
