• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1963 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 253051

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• OC58 AC126 OC44

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: EL3787 /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 100 x 50 x 166 mm / 3.9 x 2 x 6.5 inch

• Notes

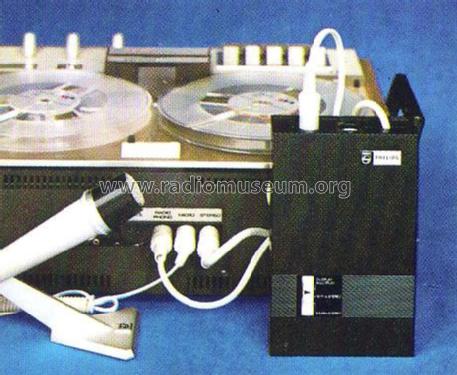

• Pre-amplifier for reproducing the 2nd channel of a mono 4-track tape recorder like EL3549A.

  The power is supplied by the tape recorder via the "stereo" 5 pin DIN connector.

  A loudspeaker output is not present - the use of an additional power amplifier or radio is required.

  A function switch with 3 positions is present:

  1. reproduction at 9.5 cm/sec.
  2. reproduction at 19 cm/sec.
  3. Duoplay or multiplay.

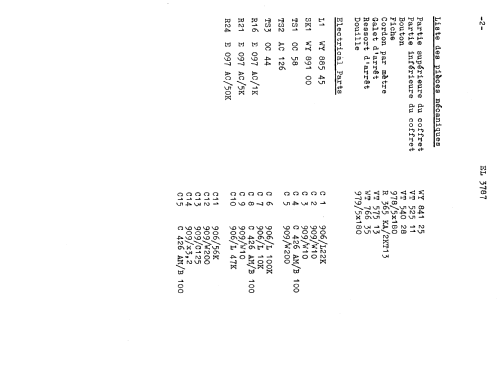

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
