• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1966

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 89881

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• AC125 AC128 AD139 AD139

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org

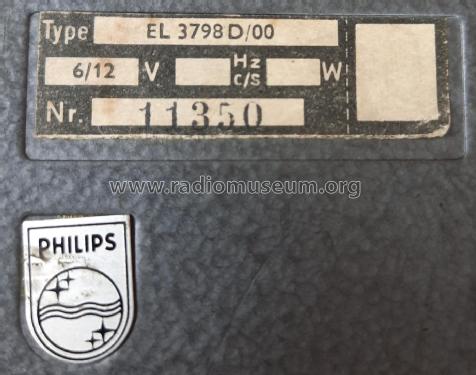

• Model: EL3798 - Philips Radios - Deutschland

• Notes
• Autohalterung mit Verstärker für Cassetten-Recorder.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
