• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1952

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 192991

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF40 ECC40 EL41 EL41 EL41 EL41 AZ50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• AC/DC-set / 110-245 / 13,2 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

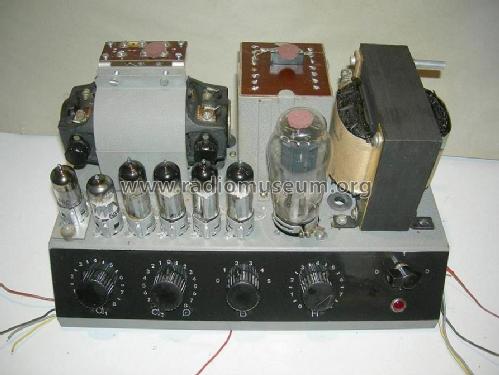

• Model: EL6610/00 - Philips; Eindhoven tubes

• Notes
• With a 13,2V motor/generator for DC power supply.

• Source of data
• -- Schematic

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
