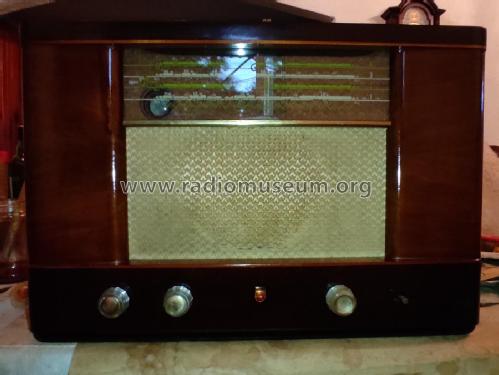

El Rey del Bosque BK425A
Philips del Uruguay S.A.; Montevideo
- Country
- Uruguay
- Manufacturer / Brand
- Philips del Uruguay S.A.; Montevideo
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255020
Knob missing
Advertisement 1953
Advertisement 1953
- Number of Tubes
- 6
- Valves / Tubes
- ECH42 EAF42 EBC41 EL41 unknown_Magic-Eye unknown_Tube
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 90-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: El Rey del Bosque BK425A - Philips del Uruguay S.A.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 325 x 200 mm / 18.9 x 12.8 x 7.9 inch
- Notes
-
Toda onda, ensanche en 25 y 30 m. 6 válvulas "Técnica A" (rimlock). Gabinete de madera fina.
- Price in first year of sale
- 450.00 $
