• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 126188

• • Brand: Deutsche Philips-Ges.

• Number of Transistors
• 4

• Semiconductors
• AC126 AC126 AC127 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

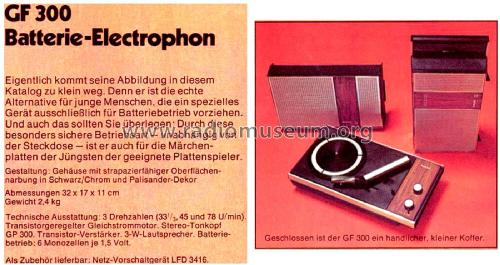

• Model: Electrophon GF300 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 110 x 170 mm / 12.6 x 4.3 x 6.7 inch

• Notes
• Geschwindigkeiten: 33/45/78 UpM; Kristallsystem GP300 mit Duplonadel 946/SS50.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Price in first year of sale
• 2,490.00 Ptas

• Source of data
• Handbuch VDRG 1969/1970

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
