• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962 ?

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 250672

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Elektrodynamisches Stereomikrofon EL3748 /00 /01 - Philips; Eindhoven tubes

• Shape
• Miscellaneous shapes - described under notes.

• Notes

• Stereo-Mikrofon mit 2 integrierten um 90 Grad versetzten dynamischen Mikrofonkapseln in einem gemeinsamen Gehäuse. Dieses Mikrofon ist besonders für Stereo-Tonbandgeräte konzipiert. Impedanz (bei 1 kHz) = 500 Ohm.

• Mentioned in

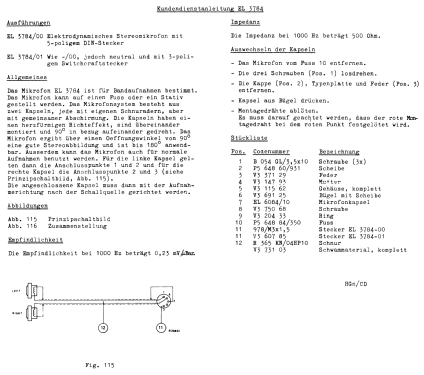

• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
