• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1966/1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 80077

• • Brand: Deutsche Philips-Ges.

• Number of Tubes
• 2

• Valves / Tubes

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

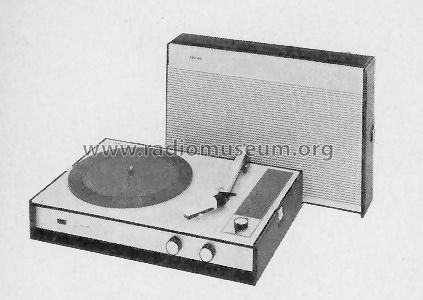

• Model: Elektrophon SK 66 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 355 x 230 x 150 mm / 14 x 9.1 x 5.9 inch

• Notes
• Geschwindigkeiten: 78, 45, 33 U/min Tonabnahmesystem: AG3310, Diamant. Lautsprecher im Deckel eingebaut.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• Handbuch VDRG 1966/1967

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
