06AF557
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1975 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 271731
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

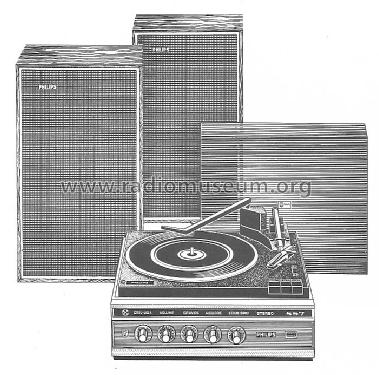

- Model: 06AF557 - Philips do Brasil S.A.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 355 x 190 x 315 mm / 14 x 7.5 x 12.4 inch
- Notes
-
Stereo, 2 x 10W/4Ω
Record changer mechanism 06GC057/02
Semiconductors listed only once.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
