Eletrofone 06AF610 /00
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1980 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 271765
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Main principle
- Audio-Amplification
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Eletrofone 06AF610 /00 - Philips do Brasil S.A.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 415 x 170 x 350 mm / 16.3 x 6.7 x 13.8 inch
- Notes
-
This model uses 2 speaker box model 06AH410/00 (supplied with the set) and record player mechanism type 06AF062
PU cartridge 06GP615 (ceramic, stereo).
Each semiconductor type listed once only.

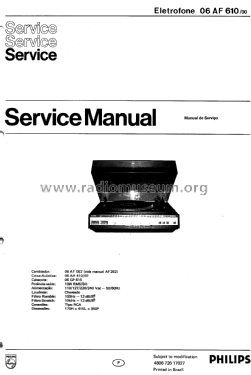

- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
