• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 302272

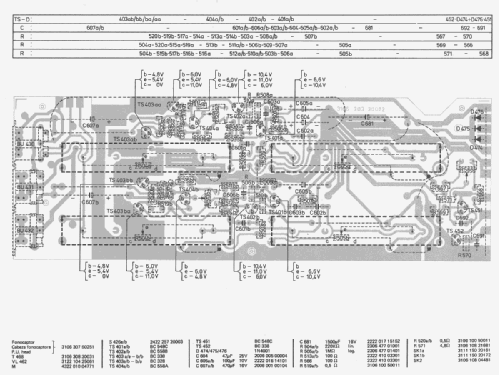

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC548 BC558 BC558 BC338 BC328 BC548 BC558 BC558 BC338 BC328 BC548 BC338 1N4001 1N4001 1N4001

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 (R20) Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Eletrofone 06GF623 /00B /00L - Philips do Brasil S.A.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 396 x 130 x 245 mm / 15.6 x 5.1 x 9.6 inch

• Notes

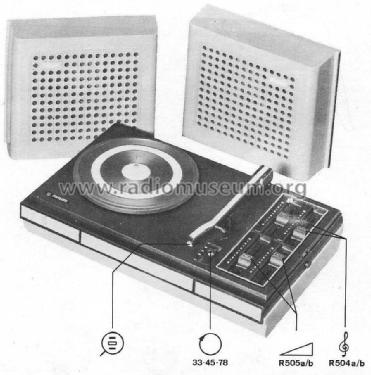

• 2 channel stereo record player. Tone control; DC motor with electronic speed regulator.

  Two versions:
  /00B = white
  /00L = red

  Delivered with two speakers.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
