Eletrofone 06GF723 /00R
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 301762

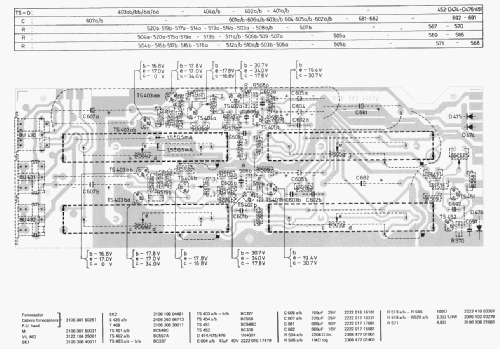

Manufacturer literature
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- BC548 BC557 BC558 BC337 BC327 BC548 BC557 BC558 BC337 BC327 BC548 BC338 1N4001 1N4001 1N4001
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 18 cm = 7.1 inch
- Power out
- 5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Eletrofone 06GF723 /00R - Philips do Brasil S.A.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 396 x 86 x 252 mm / 15.6 x 3.4 x 9.9 inch
- Notes
-
2 channel stereo, 2 x 2.5 Watts
Ceramic cartridge pickup
Detachable speaker boxes
33, 45 and 78 rpm turntable
Bass and treble controls
DC motor with electronic speed regulator
Slide controls
- Net weight (2.2 lb = 1 kg)
- 5.9 kg / 12 lb 15.9 oz (12.996 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
