F4X21A

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97455

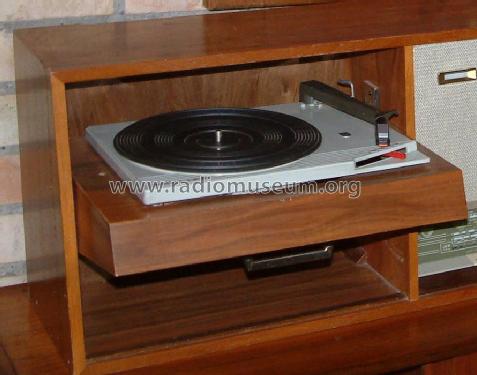

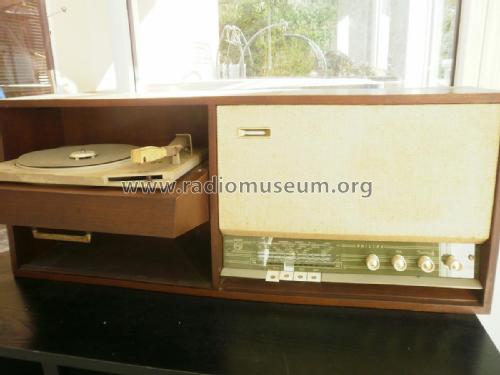

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: F4X21A - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 825 x 330 x 220 mm / 32.5 x 13 x 8.7 inch

• Notes
• gleiches Chassis wie B3X92A und B3X02A;
  Phono-Chassis = AG2056.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 5244 models, 4386 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
