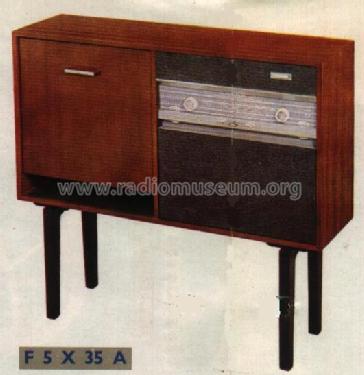

F5X35A /00 /01
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30017
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 90-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F5X35A /00 /01 - Philips; Eindhoven tubes
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 828 x 759 x 250 mm / 32.6 x 29.9 x 9.8 inch
- Notes
- Plattenspieler AG2056-00G bei Ausf. 00/01; AG2056-60G bei Ausf. 60/61
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
