F6-R81-A
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339981
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- Semiconductors
- OA81
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 4.5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F6-R81-A - Philips do Brasil S.A.
- Shape

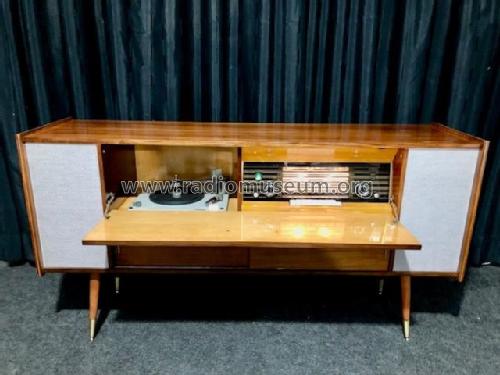

- Console, Lowboy (legs < 50 %).
- Notes
-
Stereophonic amplifier.
- Mentioned in

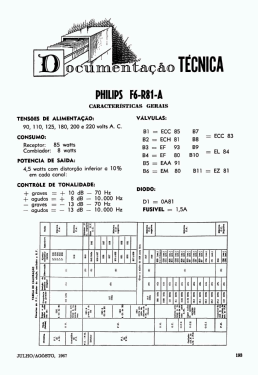

- Eletrônica Julho Agosto 1967 Nº22, Brazilian Magazine
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
