F6X12A /05 /07
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30031

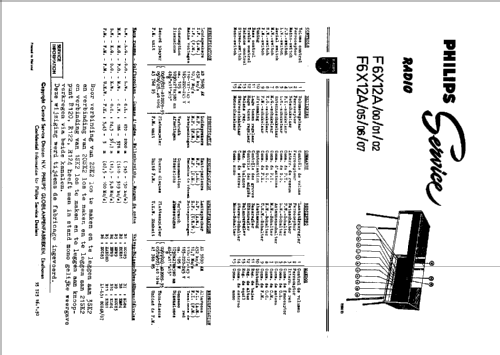

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F6X12A /05 /07 - Philips; Eindhoven tubes
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 1090 x 380 x 278 mm / 42.9 x 15 x 10.9 inch
- Notes
- Plattenspieler AG2009-95 bei Ausf. 00-02, AG1016 bei Ausf. 05-07
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
