• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30030

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

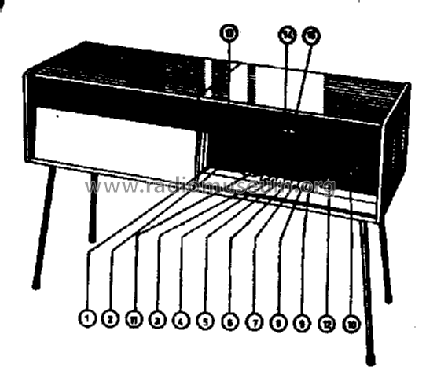

• Model: F6X12A /00 /02 - Philips; Eindhoven tubes

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 1090 x 380 x 278 mm / 42.9 x 15 x 10.9 inch

• Notes
• Plattenspieler AG2009-95 bei Ausf. 00-02, AG1016 bei Ausf. 05-07

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
