• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30045

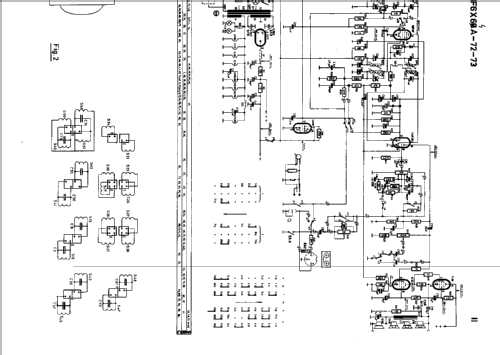

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EABC80 EM80 EL86 EL86 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: F6X64A - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1000 x 820 x 395 mm / 39.4 x 32.3 x 15.6 inch

• Notes
• Plattenwechsler AG1003

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
