• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30083

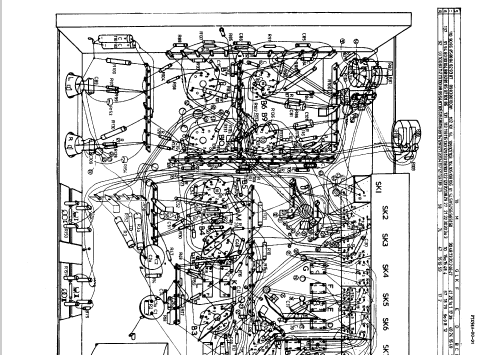

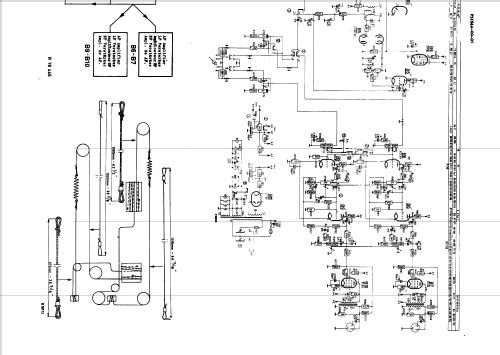

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F7X94A /00 /01 - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1150 x 435 x 325 mm / 45.3 x 17.1 x 12.8 inch

• Notes
• Pl.-Wechsl. AG1024 - 95 bei Ausf. 00, Pl.-Wechsl. AG1005 - 95 bei Ausf. 01

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
