F8X52A /00 /01
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30094

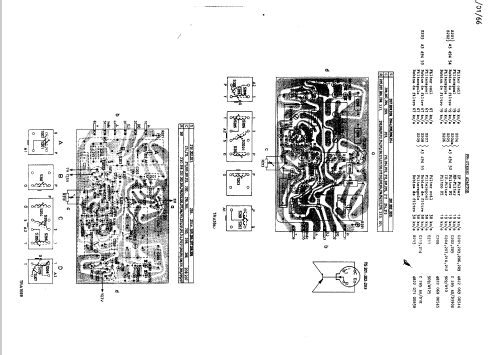

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F8X52A /00 /01 - Philips; Eindhoven tubes
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1410 x 740 x 442 mm / 55.5 x 29.1 x 17.4 inch
- Notes
-
Pl.-Wechsl. AG1030W-03,
460 kHz ZF bei Ausführung /66.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
