• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29557

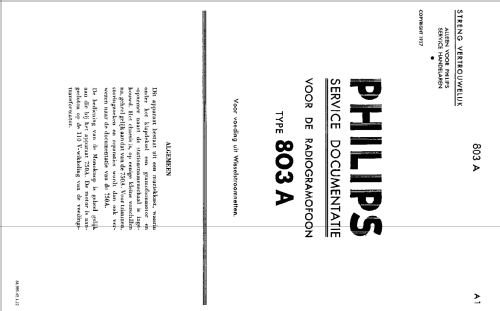

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF5 EBC3 EBL1 EM1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fantasia 803A - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Notes

• This unit contains the chassis from model 750A.

  Loudspeaker type 9652 (9 Ohm).

  Record player from Garrard type AC8 (not automatic, motor for AC mains only).



• Price in first year of sale
• 345.00 hfl

• Source of data
• Overzicht v.de toe te p PHILIPS

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.

• Other Models

• Here you find 5250 models, 4394 with images and 3450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
