• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86903

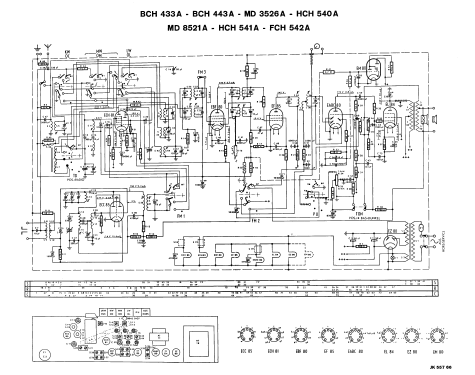

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

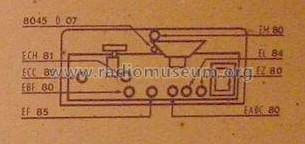

• ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, am Trafo 145 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FCH542A - Philips - Schweiz

• Shape
• Console with any shape - in general

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Walter Haring. See "Data change" for further contributors.

• Other Models

• Here you find 290 models, 216 with images and 224 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
