• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241682

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• TRF with diode detector

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 110; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 1.5 W (3 W max.)

• Material
• Wooden case

• from Radiomuseum.org

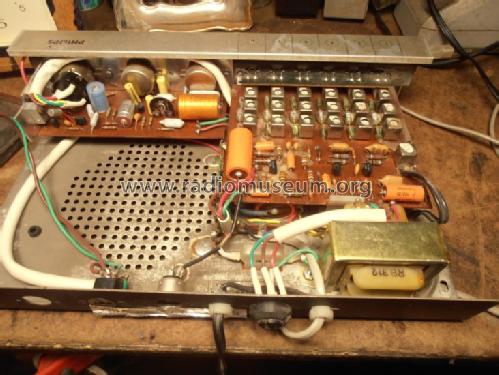

• Model: Filodiffusore 19RB312 - Philips Italy; Milano MI

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 330 x 70 x 210 mm / 13 x 2.8 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
