• Country
• Australia

• Manufacturer / Brand
• Fleetwood Television Pty. Ltd.; Sydney

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195841

• Number of Tubes
• 5

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 240-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

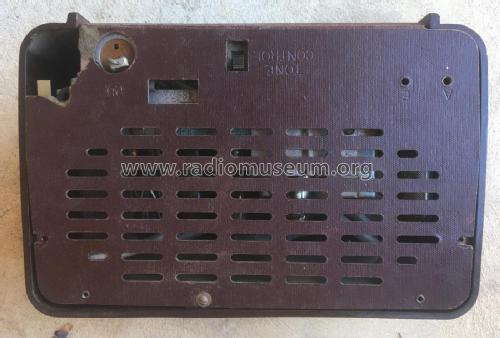

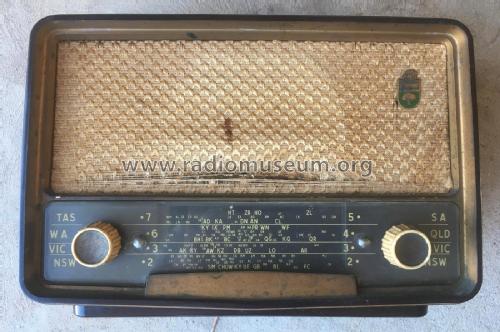

• Model: Fleetwood 1061A - Fleetwood Television Pty. Ltd.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Fleetwood brand.

  Rebadged Philips Quintet 165A.



• Price in first year of sale
• 23.10 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XIV

• Literature/Schematics (1)
• - - Manufacturers Literature (Fleetwood Radio Service Data.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P20.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
