• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 138774

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF80 5718 5718 EC80 EF80 EF80 EL81 EZ80 85A2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

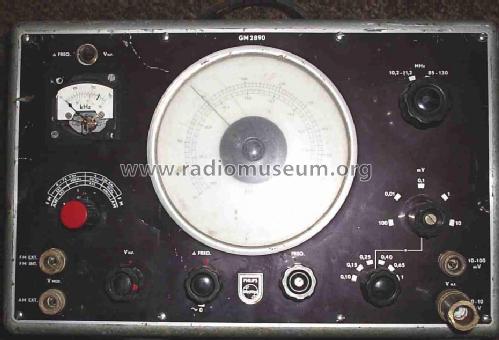

• Model: FM Meßgenerator GM2890 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Notes

• FM-Meßgenerator, HF-Bereich 85-130 MHz und ZF-Bereich 10,2 -11,2 MHz.

  Zubehör: Impedanz-Transformator GM4511, 59,-DM

• Price in first year of sale
• 1,080.00 DM

• Mentioned in
• Funkschau (Funkschau-Schaltungssammlung 1958/2)

• Literature/Schematics (1)
• Handbuch RFP 1957 (1957/58 S.484)

• Author
• Model page created by Rigo Janscheidt † 27.7.18. See "Data change" for further contributors.
