• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1930–1932

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 163170

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Frame Aerial 4104 [w/o window] - Philips; Eindhoven tubes

• Notes

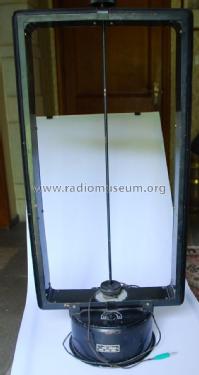

• There is also a version having a window below the tuning knob.

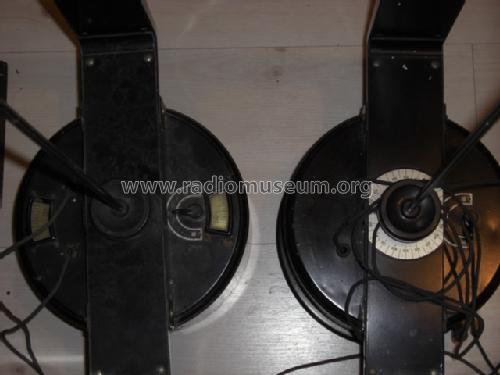

  The frame areal model 4104 for Philips radio models 2511, 2553, 2601 or 2811 can also be used for other radios. Below the tuning knob there is either a window to see the "tuning point" on the base - or there is a scale on the frame below the turning knob. See the window version here.

  This frame aerial is not very common, quite in contrast to most radio models for what it was built, like for instance model Philips 2511. See there also the "full most expensive combination" of radio model 2511 combined with this frame areal model 4104, speaker model Le Martien 2113 or Meesterzanger 2011  (low version 2009 also possible, but most often cheaper speakers) plus the Philector 4180, but not visible the necessary power supply like Philips 3009 or other.

• Author
• Model page created by Jean-Louis HEYD. See "Data change" for further contributors.
