Freetimer 2 Band Spatial Stereo Radio Cassette Recorder D8040 /01 /10 /17

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324754

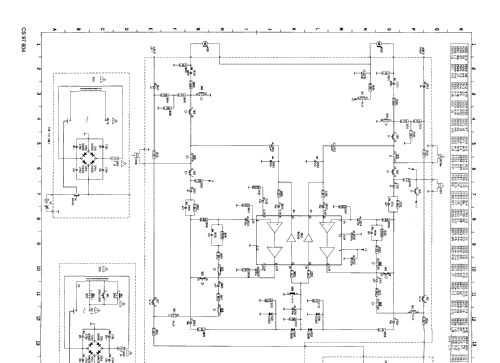

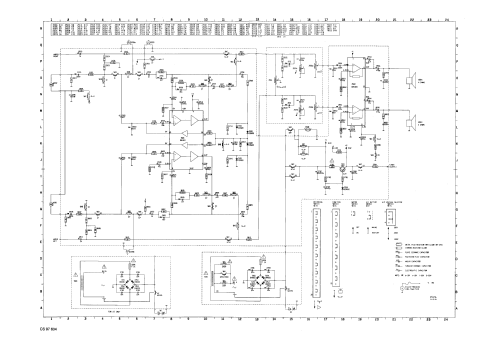

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120-240 / C: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3.6 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Freetimer 2 Band Spatial Stereo Radio Cassette Recorder D8040 /01 /10 /17 - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Philips D-8040 Freetimer 2 Band Spatial Stereo Radio Cassette Recorder

    Versions:

    • /01 /10: 120/220/240 @ 50 or 60 Hz
    • /17: 120 V @ 60 Hz

    See also D8040 /49R and D8040 /02R.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
