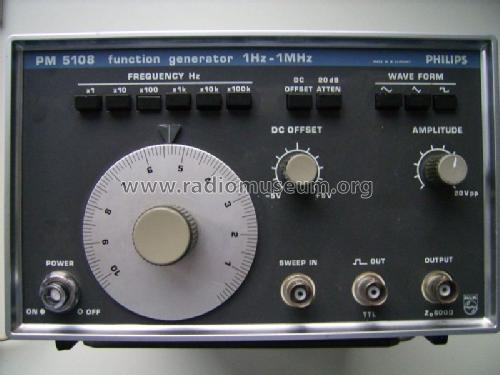

Function Generator PM5108
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 229070
-
- Brand: Deutsche Philips-Ges.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Function Generator PM5108 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 230 x 145 x 300 mm / 9.1 x 5.7 x 11.8 inch
- Notes
-
1 Hz - 1 MHz in fünf Bereiche durch Tasten aufgeteilt.
Ausgangssignal: Sinus, Dreieck und Rechteck
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Author
- Model page created by Dieter ADAM. See "Data change" for further contributors.
