• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30114

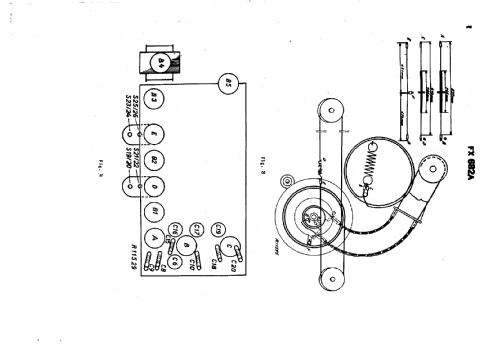

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM4

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 32 cm = 12.6 inch

• Material
• Wooden case

• from Radiomuseum.org

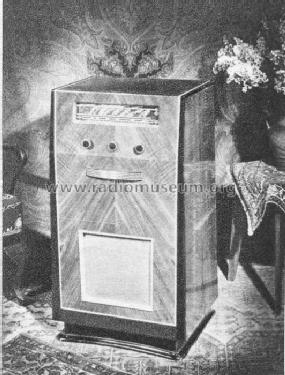

• Model: FX682A - Philips; Eindhoven tubes

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 530 x 950 x 400 mm / 20.9 x 37.4 x 15.7 inch

• Notes
• Pl.Spieler : 2972 Chassis like Sierra S224A.

• Price in first year of sale
• 785.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
