22GA160 Ch= 22GC060

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1971–1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 126511

• • Brand: Deutsche Philips-Ges.

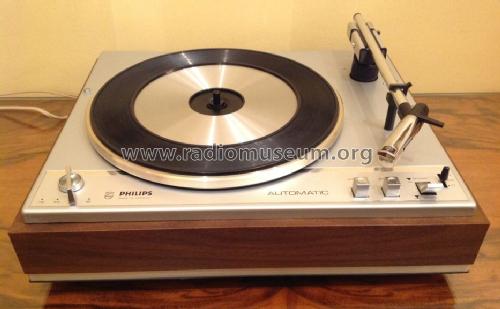

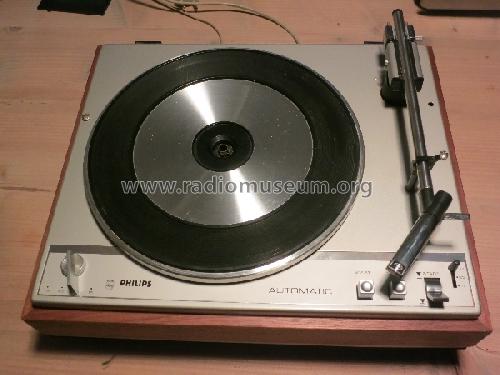

• Picture

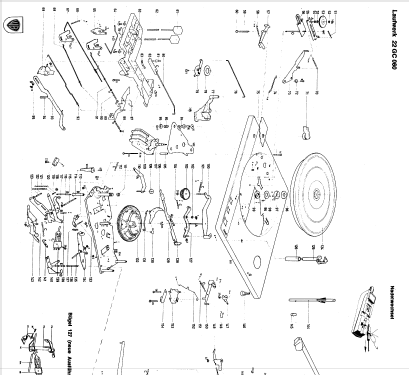

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage

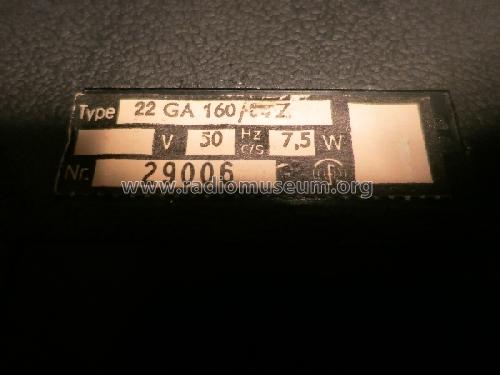

• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22GA160 Ch= 22GC060 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 370 x 160 x 300 mm / 14.6 x 6.3 x 11.8 inch

• Notes

• 6-fach Plattenwechsler mit 4 Geschwindigkeiten. Getrennte Einstellung für Balance und Nadelauflagekraft (2 - 5 gr). Durchmesservorwahl.

  Geliefert mit Tonabnehmer GP205. Weitere Systeme und Optionen siehe Chassis 22GC060.

  Höhe ohne Haube.

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Source of data
• Handbuch VDRG 1971/1972

• Mentioned in

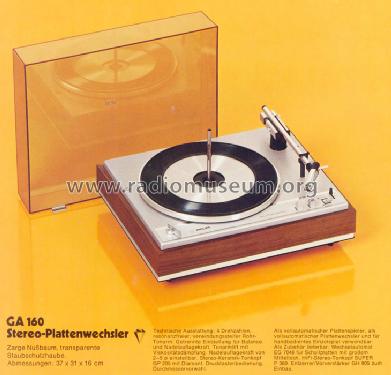

• -- Original prospect or advert (Philips-Katalog 1972)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
