• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1974–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 124979

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

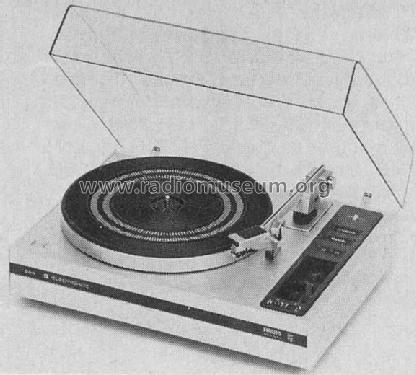

• Model: GA209S Electronic - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 440 x 170 x 330 mm / 17.3 x 6.7 x 13 inch

• Notes
• HiFi-Automatik-Plattenspieler mit 33/45 UpM. Elektronisch tachogeregelter Gleichstrommotor mit Riemenantrieb; Drehzahlfeinregulierung und Skatingkompensation. System: Super M 412.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• Handbuch VDRG 1974/1975

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
