• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1976–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 124976

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC548 BC548 BC558 BC338 BD135 BD135 BAX18 BA317

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: 406 automatic 22GA406 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 415 x 145 x 345 mm / 16.3 x 5.7 x 13.6 inch

• Notes
• Vollautomatischer HiFi-Stereo-Plattenwechsler mit 33/45 UpM. Elektronisch tachogeregelter Gleichstrommotor mit Riemenantrieb; Drehzahlfeinregulierung und Skatingkompensation.
  Zarge silber oder schwarz.
  Bei der Vorstellung in der Funktechnik 406 Automatik DC Servo genannt.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)
• Funk-Technik (FT) (11/76 Seite 354)

• Literature/Schematics (2)

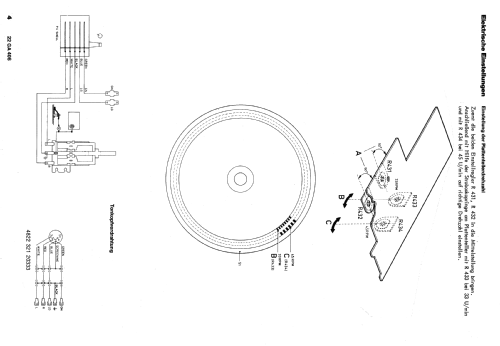

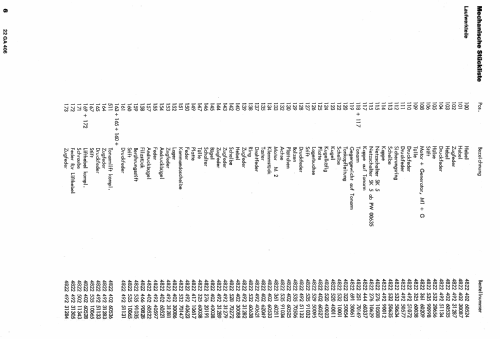

• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
