Gemma 303 B3D03A natur

Philips Radios - Deutschland

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Philips Radios - Deutschland

Year
1960/1961

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
23446

- Brand: Deutsche Philips-Ges.

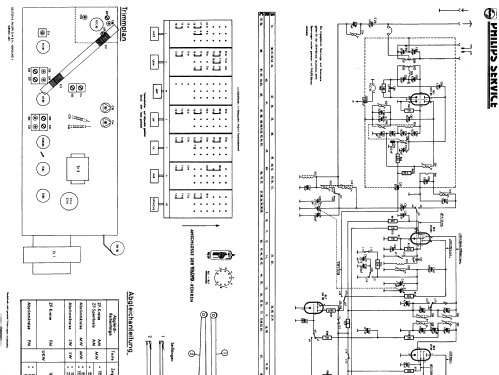

Schematics

Gemma 303 B3D03A; Philips Radios - (ID = 31017) Radio — Philips Radios - Gemma 303 B3D03A (3)

Gemma 303 B3D03A; Philips Radios - (ID = 31018) Radio — Philips Radios - Gemma 303 B3D03A (3)

Gemma 303 B3D03A; Philips Radios - (ID = 460696) Radio — Philips Radios - Gemma 303 B3D03A (3)

Gemma 303 B3D03A; Philips Radios - (ID = 460697) Radio — Philips Radios - Gemma 303 B3D03A (3)

Gemma 303 B3D03A; Philips Radios - (ID = 2131403) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 2131404) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 2131405) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 192499) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 192500) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 38663) Radio — Philips Radios - Gemma 303 B3D03A (2)
Philips Gemma 303 (B3D03A)

Gemma 303 B3D03A; Philips Radios - (ID = 30994) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 296960) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 296961) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 296962) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 553060) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553061) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553062) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553063) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553064) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553065) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 553066) Radio — Philips Radios - Gemma 303 B3D03A (1)
Sammlung

Gemma 303 B3D03A; Philips Radios - (ID = 995078) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995082) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995085) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995087) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995088) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995089) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 995090) Radio — Philips Radios - Gemma 303 B3D03A (1)

Gemma 303 B3D03A; Philips Radios - (ID = 2148884) Radio — Philips Radios - Gemma 303 B3D03A (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Tuned circuits
6 AM circuit(s) 10 FM circuit(s)

Wave bands
Broadcast, Long Wave and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 117/220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Material
Wooden case

from Radiomuseum.org
Model: Gemma 303 B3D03A [natur] - Philips Radios - Deutschland

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
450 x 280 x 190 mm / 17.7 x 11 x 7.5 inch

Notes
Nussbaum oder Ahorn, natur

Net weight (2.2 lb = 1 kg)
6.5 kg / 14 lb 5.1 oz (14.317 lb)

Price in first year of sale
245.00 DM

External source of data
Erb

Source of data
HdB d.Rdf-& Ferns-GrH 1960/61

Literature/Schematics (1)
-- Original-techn. papers.
