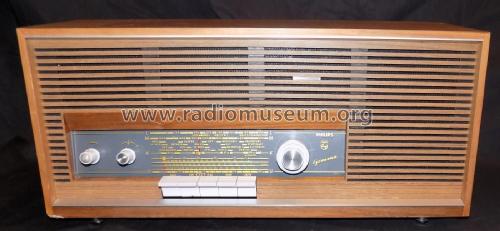

Gemma 12RB363

Philips Radios - Deutschland

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Philips Radios - Deutschland

Year
1966/1967

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
26507

- Brand: Deutsche Philips-Ges.

Schematics

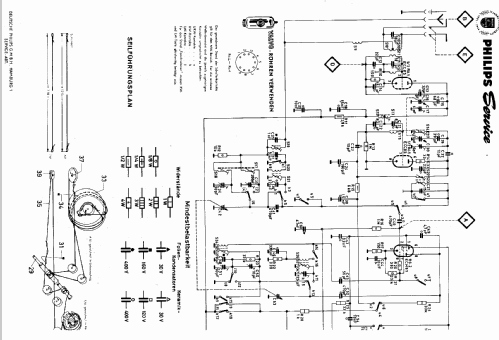

Gemma 12RB363; Philips Radios - (ID = 404237) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 404241) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 404243) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 404245) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 404244) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 740881) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 2001188) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 2001189) Radio — Philips Radios - Gemma 12RB363 (3)

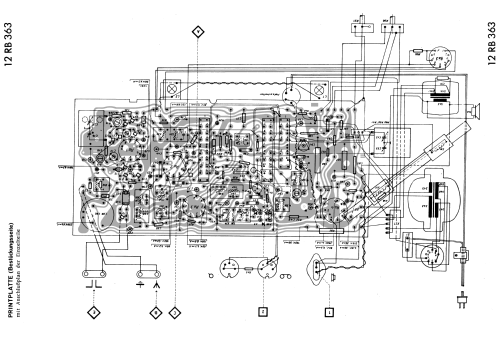

Gemma 12RB363; Philips Radios - (ID = 2001190) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 2001191) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 2001192) Radio — Philips Radios - Gemma 12RB363 (3)

Gemma 12RB363; Philips Radios - (ID = 418496) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 418498) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 418495) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 331312) Radio — Philips Radios - Gemma 12RB363 (2)
Q: Philips Service

Gemma 12RB363; Philips Radios - (ID = 418497) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 757456) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 1963453) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 1963456) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 1963459) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 1963461) Radio — Philips Radios - Gemma 12RB363 (1)

Gemma 12RB363; Philips Radios - (ID = 1963463) Radio — Philips Radios - Gemma 12RB363 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
ECC85 ECH81 EBF89 ECL86 EM84

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Tuned circuits
6 AM circuit(s) 10 FM circuit(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 127; 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
3 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Gemma 12RB363 - Philips Radios - Deutschland

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
455 x 190 x 170 mm / 17.9 x 7.5 x 6.7 inch

Notes
Dioden: 2× AA119.

Net weight (2.2 lb = 1 kg)
3.5 kg / 7 lb 11.3 oz (7.709 lb)

External source of data
erb

Source of data
Handbuch VDRG 1966/1967
